I had the same Mirror & same problem...this one was from Moss.
also the Acorn nut is precariously close to the windscreen.
? how robust is wave washer ? would a split washer work ?
cheers*

all good to know !

HAPPY 2024 TO ALL !!

so one should fill to the top of the cup.?
mine took two quarts to get to the bottom of the cup...
'put Abindon 90 for the winter, 140 for the summer?

Great, thanks for the photo!
i'll fab a special tool.

got another question.

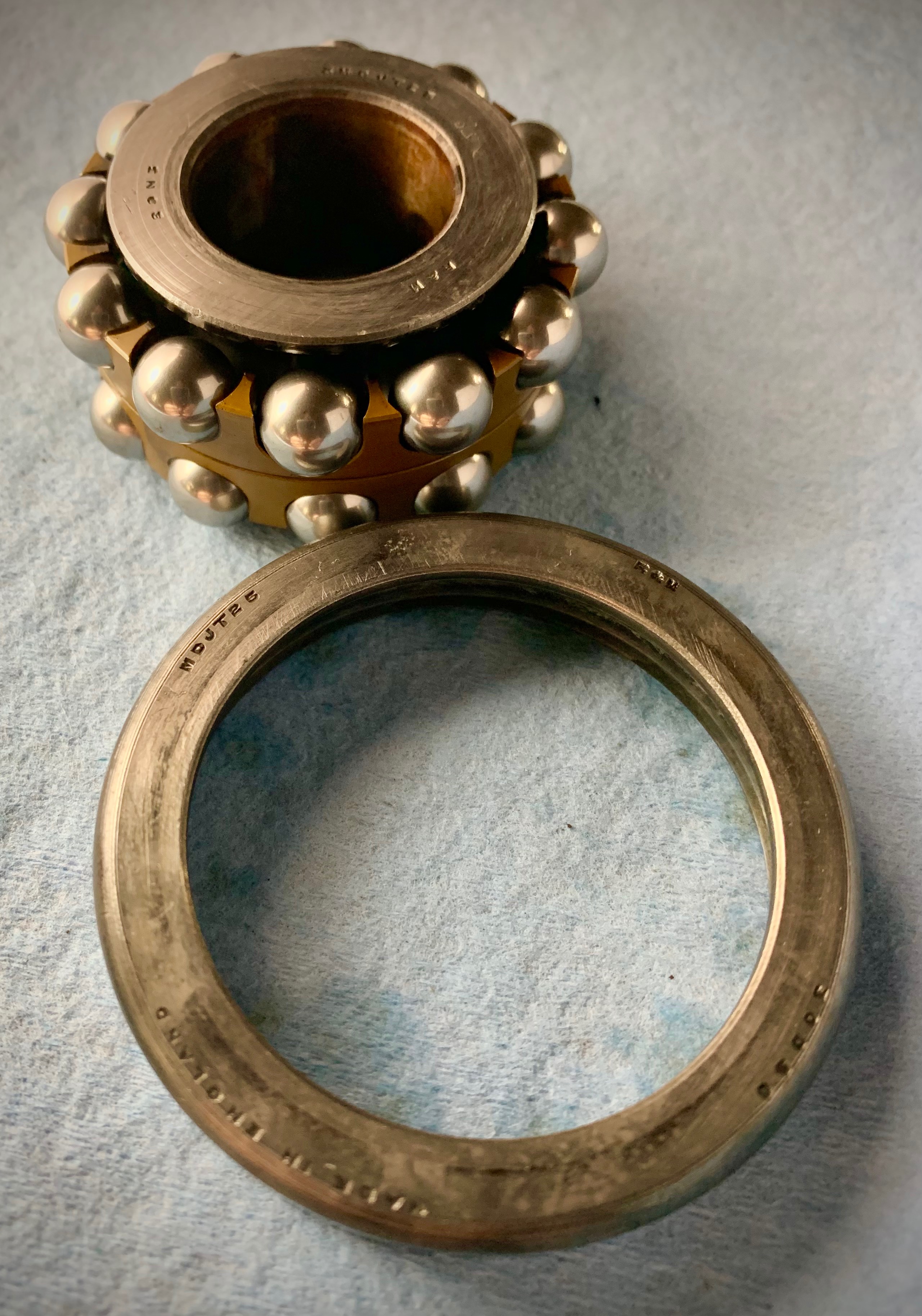

the outer (front) race of the double row ball pinion bearing can be pressed home by hand.
should i use some Loctite Bearing Fit #641 ?

'49 TC
'have my pinion housing on the bench, & fully assembled.
waiting for shims to arrive...
is there a trick way to torque the pinion nut (100+lbs) on the bench ?

maybe shims should be marked > .010 +/- (more or less)...

'49 TC
'was checking the pinion shims from Moss... 236-490
the two .010 shims measured* .007. ( *Starrett micrometer )
the .002 shim was .002 .

cool, thanks Rob !

Duncan,
will be reusing these ... seem ok ... no play & cages looked fine.

up date: got the pinion housing separated... with effort ... ( found permatex aircraft? gasket sealer, the hard stuff ) on the matting service. also under the pinion cap. now cleaning & awaiting parts... ? front pinion bearing . does the double row ball cage care witch side is out ? ? blue hylomar o...

Great info !
"pictures are worth a thousand words..."
thank you , Steve & Duncan.
? will the carrier remove & clear w/ driveshaft in place ?
cheers,
Tom

I'm new to mg t-abc... ive had my 49 TC exu for about 10 years, and have gotten to the point i needed to change the pinion cap. no problem... using the Moss upgrade ... unfortunately the two guide pins are not reusable. does any one know of a source of those guide pins ? no luck with Moss,(the photo...
