TB Inner Dash Mounting

ferricsteed · Post by **ferricsteed** » Fri Sep 29, 2017 10:43 am

What all holds the inner dash in place? I am particularly interested in the underdash metal braces that my TB is probably missing.
Tim Bloomfield
TB0613
Humid Louisiana

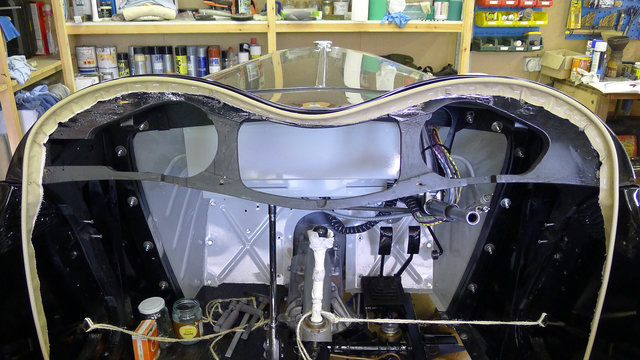

cdrolshagen · Post by **cdrolshagen** » Sat Sep 30, 2017 12:53 am

Hi Tim,
hope that helps,
cheers Carl

Tim Jackson · Post by **Tim Jackson** » Sat Sep 30, 2017 1:28 pm

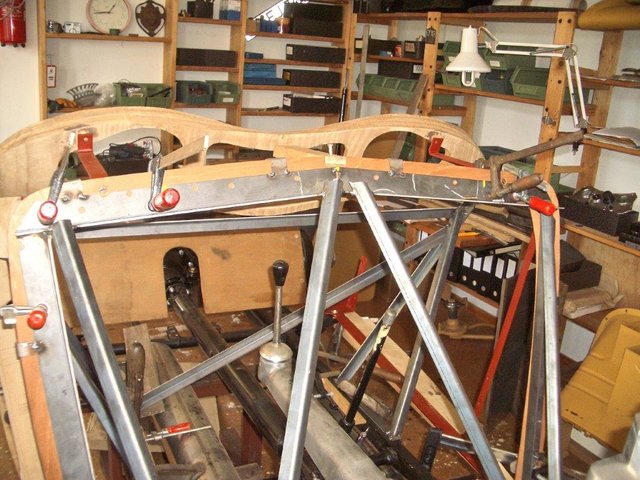

Another angle for a TC. Zoom in to see the two supporting brackets and fastener positions

ferricsteed · Post by **ferricsteed** » Mon Oct 02, 2017 9:19 am

Thank you Tim and Carl. I am missing these two brackets. It looks like a slotted screw goes through the inner dash and through the metal bracket and held in place with a nut. The other end of the bracket fastens up to the bulkhead is less obvious. It looks like it could simply have two slotted wood screws for each bracket or it could be bolted with the through bolts that hold the scuttle to the bulkhead. Would you let me know. Excellent pictures by the way.
Regards,
Tim Bloomfield
TB0613
Louisiana

cdrolshagen · Post by **cdrolshagen** » Thu Oct 05, 2017 4:13 am

Hi Tim,
the brackets are not bolted to one of the bulkhead bolts,

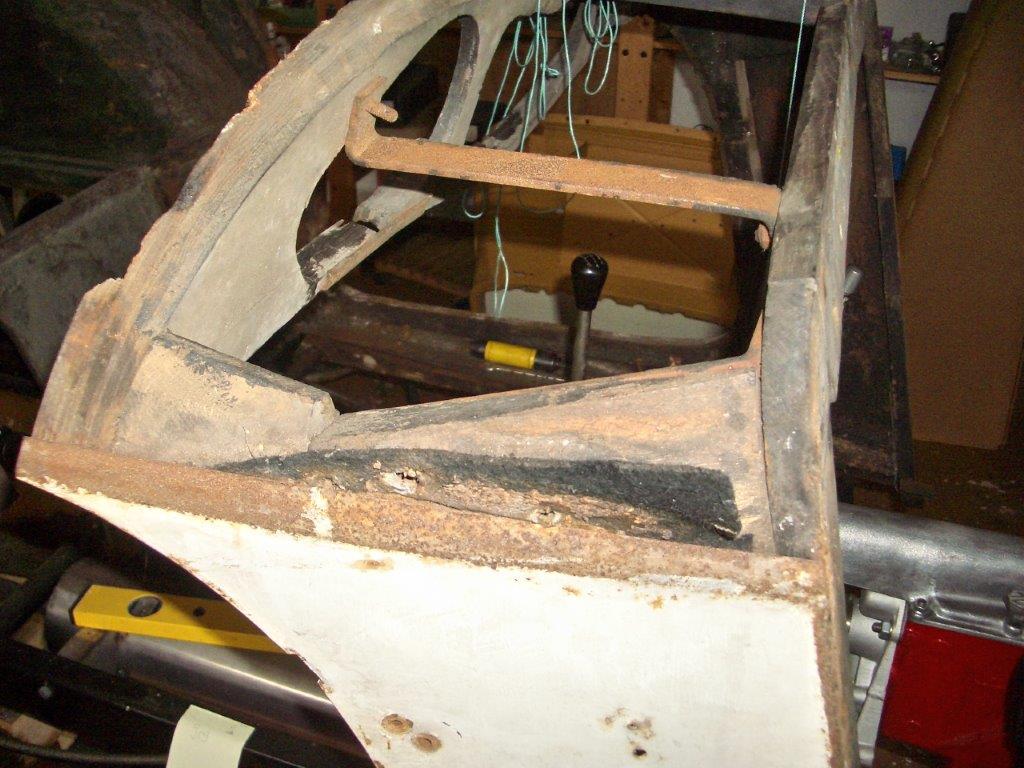

attaches a picture you can spot the bracket bolts, all bolts are countersunk slotted 5/16 BSF
cheers Carl
